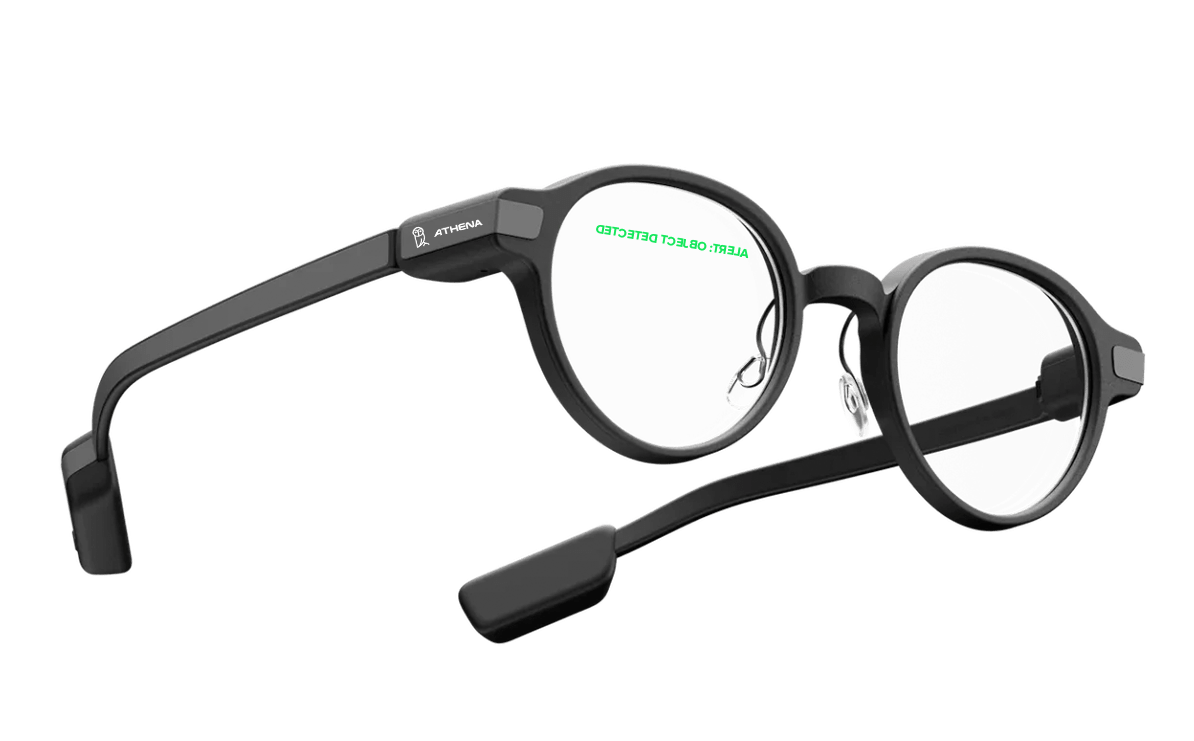

AthenaVision AR Alert Glasses

AthenaVision AR Alert Glasses Use Cases:

Weapons Detection System

• -Receive real-time alerts in glasses for detections from walk-through metal detectors.
• -Alert examples: “Object Detected” or “Visitor Bypassed Security.”

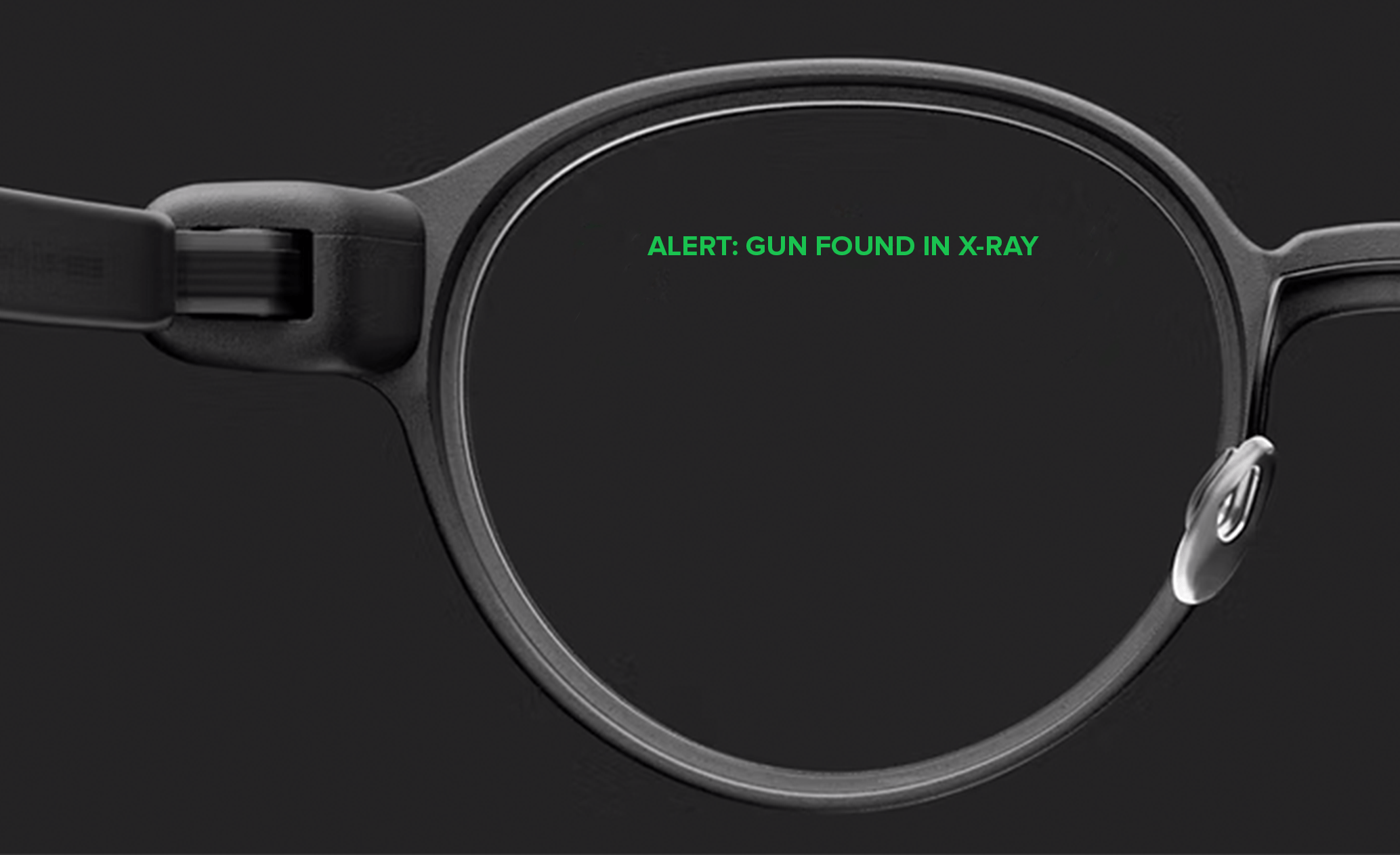

AI-Assisted X-Ray

• -Receive real-time alerts in glasses for items detected in X-ray scans.
• -Alert examples: “Gun Detected” or “Object Detected.”

Integration Into Your Existing Athena Platform

• -All products on the Athena Platform can send alerts to AthenaVision .
• -X-Ray and Weapons Detection Systems send real-time alerts to AthenaVision .

Efficient And Safe Security Officers

• -Enables quick response times to security alerts.
• -Send messages to security staff: “red alert – suspect in white shirt, blue pants”



AR Glasses Platform Message Integration
with Athena Security

This guide is intended for customers and third-party developers who want to integrate with Athena Security’s messaging API to send messages and alerts. The goal is to send alert messages—such as weapon detection alerts—to selected security groups and users associated with the groups on the account.

This is especially useful for organizations that require communication to dissemination of critical alerts through secure, automated messaging to smart glass devices.

The integration includes secure API key generation, group metadata export, and structured message dispatching and retrieving message statuses.  This document outlines each step in detail, along with examples of payloads, headers, and responses.

Document Version: 1.3

Step 1: Generate API Key

To authenticate and use the API, you’ll first need to generate an API key.

Instructions:

1. Login to the Athena Control Center
2. Navigate to Integrations → Settings
3. Under the API Keys section, click Create API Key
4. Give your key a name (e.g., “Messaging Integration”) and click Create
5. You can either:
   • Export the key securely as a .txt file
   • Or Copy the key directly

Security Tip: Store your API key securely.



Step 2: Export Group Details

To send messages to specific groups, you need their unique identifiers.

Instructions:

1. From the Integrations page, select the groups tab
2. Select one or more groups for message targeting
3. Click Export
4. Choose your preferred format: CSV or JSON

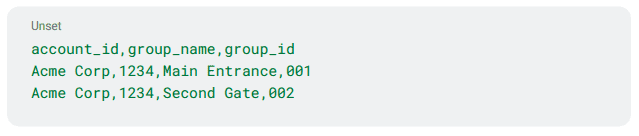

Example CSV Export

Example JSON Export



Step 3: API Authentication & Message Delivery

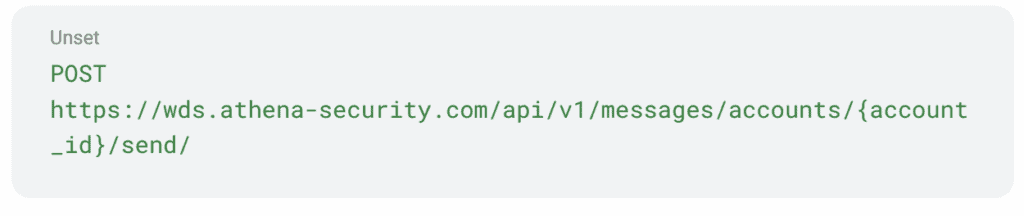

Endpoint



 ✅ Note: Include account_id in the URL.

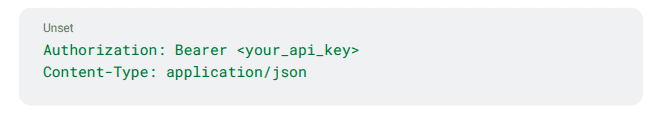

Authentication Header

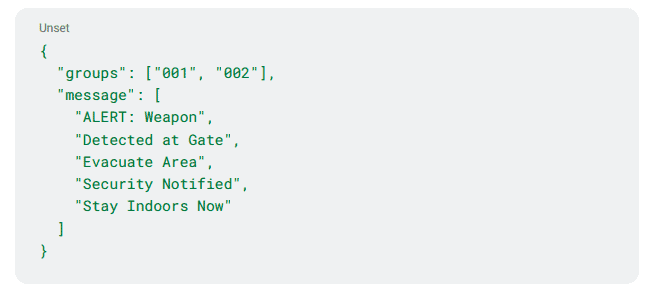

Example Alert Message Request

Message Format Guidelines

• May contain up to 5 lines
• Each line must be less than 23 characters
• Plain text only (no emojis, markdown, or special characters)
• Based on the number of groups, message objects are created and notified to glasses.

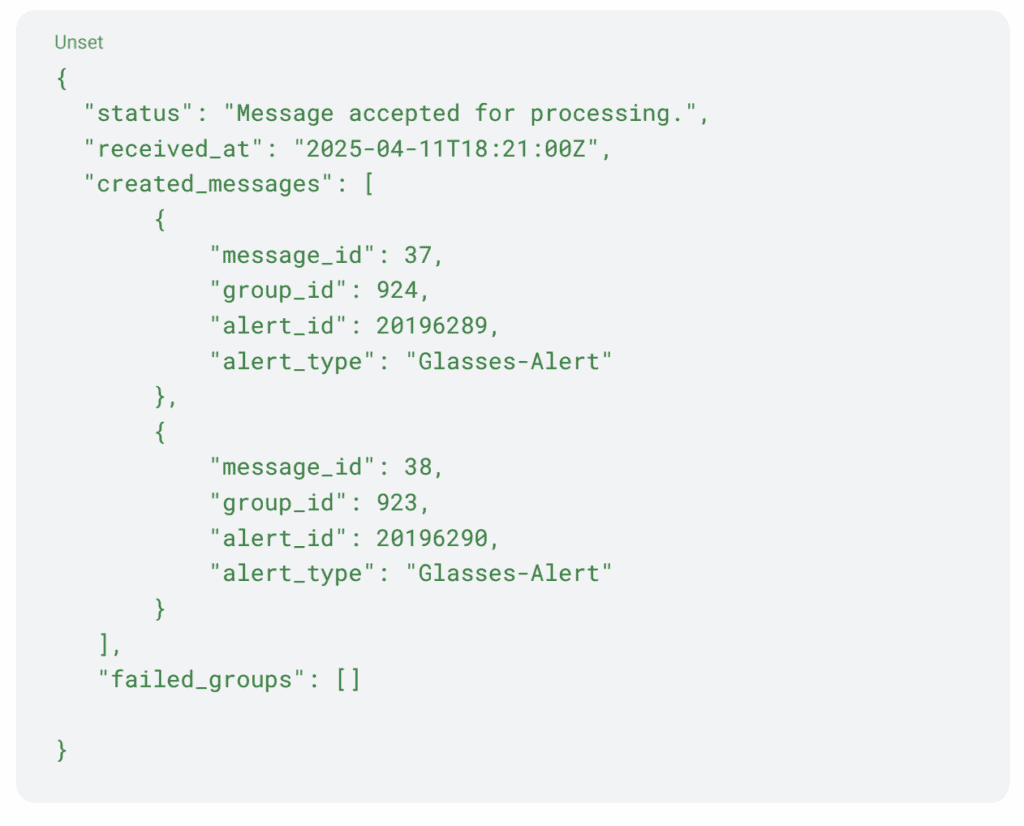

Success Response Example



Error Response Example



Step 4: Retrieving Message Status

• Message status can be retrieved from Athena security
• Respective Message id needs to be used in order to retrieve the statuses from Glasses.
• Based on the number of groups, message objects are created and notified to glasses.
• After a message is received for processing with /messages/send API, successful response is provided along with “message_id”.
• Use the message_id based on groups to retrieve statuses from glasses.

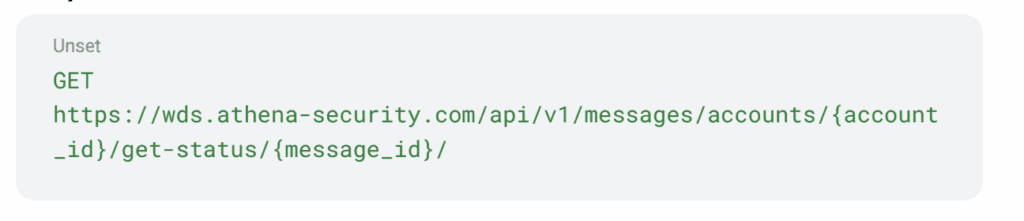

Endpoint



 ✅ Note: Include account_id and message_id in the URL. Use the API Key originated for the specific account.



Authentication Header

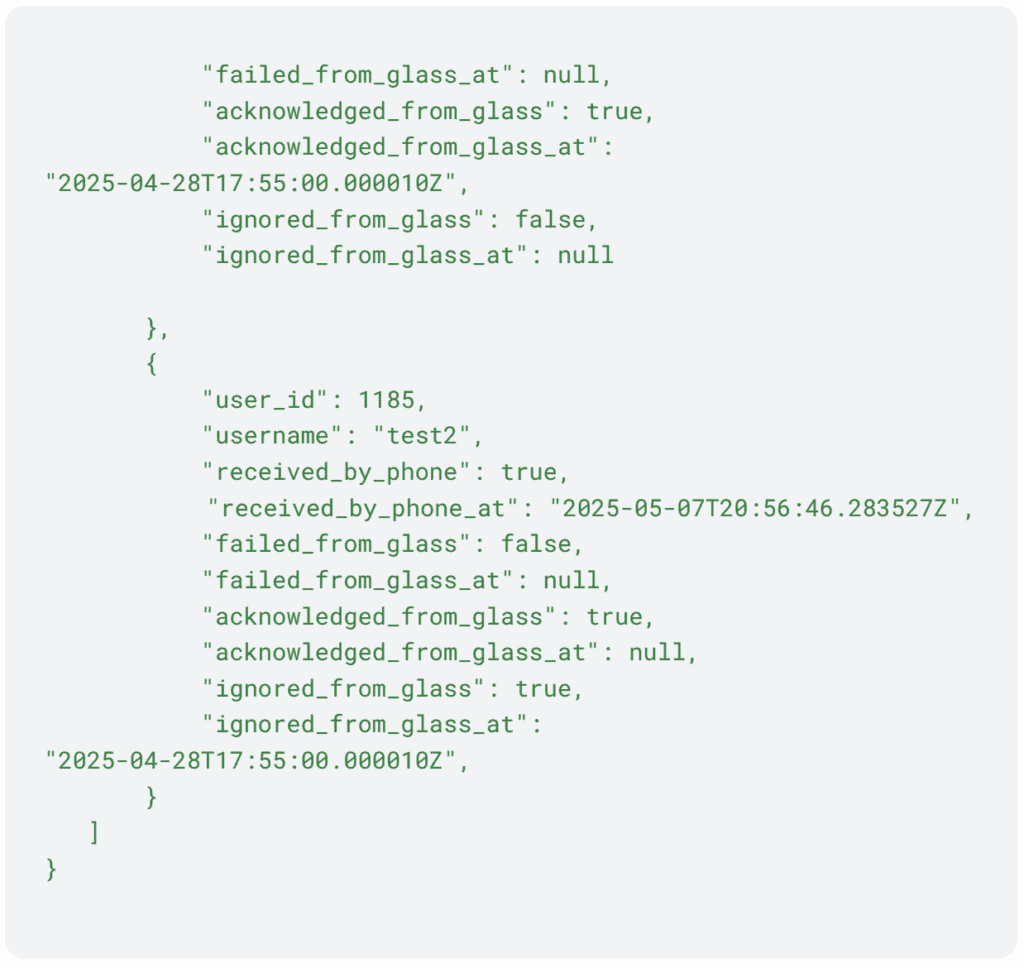

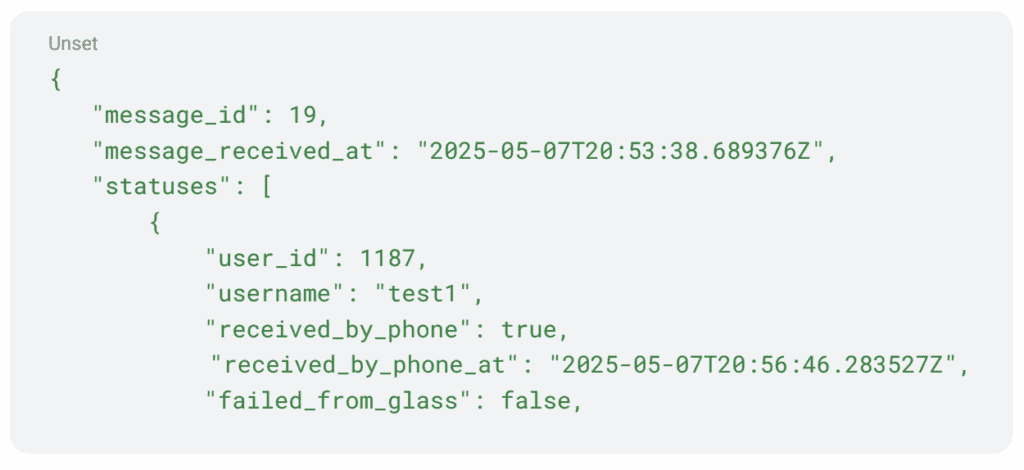

Get Status Response Example





Support & Contact

If you have questions or require integration assistance:

• 📧 Email: [email protected]

Document Info

Version: 1.3
Author: Athena Security Engineering Team
